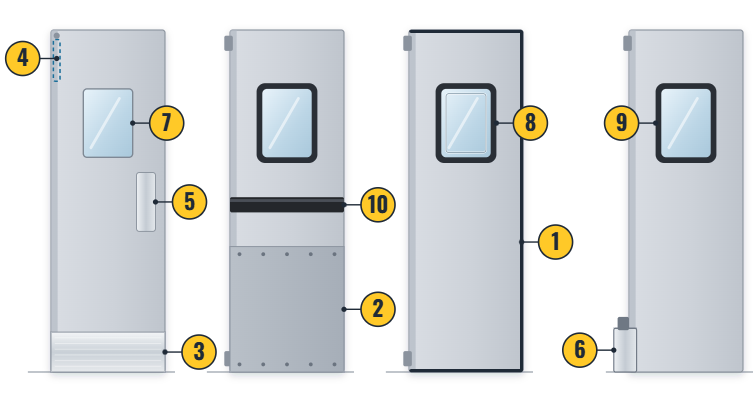

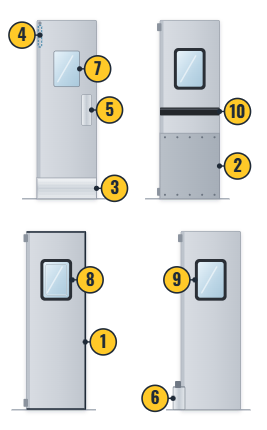

Can you show me visually what door options there are?
1. Full Perimeter Gasketing
Special applications where the door needs to be sealed from smoke, bright light, or pest control.
2. Base Plate For Sheet Doors
Added to wider panel sheet doors to stiffen and give more door support
3. Stainless Steel or ABS Kick Plate 12″ or 18″
Protection from foot contact to the door and gives added aesthetics
4. Hidden Hinges ( Select Doors Only)
The gravity hinge is built into the door panel to give the door a cleaner look
5. Push Plates (Laminate And Aluminum Doors)
Add aesthetics and reduced wear in high hand contact areas
6. Jamb Guards Protect Lower Hinge From Pallets
Use to protect lower hinge from pallet jacks or motorized equipment
7. Flush Mounted Windows (Select Doors Only)
Easier cleaning, added value of double pane window
8. Dual Pane Windows (Select Doors Only)
Better isolation from noise and temperature loss
9. Single Pane Windows
Standard feature on most models. Easy to clean, acrylic for safety
10. Bumper Strips (For Cart Contact Points)
Custom fitted to protect the door from carts in high contact areas
What is a jamb guard?
A Jamb guard for double swinging impact door is a pedestal that raises the lower door hinge off the floor to prevent it from damage caused by a pallet jack, motorized equipment or caustic soaps. For special applications, a full stainless-steel Jamb guard is also available. (This option is available on all doors)
What is a tear-drop bumper?
Tear-drop bumpers for double swinging impact doors are constructed from rubber or ABS plastic. They protrude from the door about 3-4″ and are available in heights from 18 to 42″. The bumpers main purpose is to reduce the impact from carts, pallet jacks, and motorized equipment. It also serves to hold the doors away from the product as passing through the opening. For carts and pallet jacks a tear-drop bumper of 18-36″ height works best, for motorized equipment, 36 to 42″ is better suited (This option is available on select doors)
What is a full perimeter door seal?
A full perimeter door seal is a blade type rubber gasket that closes the gap between the door and frame. This option helps contain, temperature loss, smoke, bright light, or in some cases, pest control. Most restaurant and retail applications do not require this option. (Available on all doors except sheet doors)
